SCTP Header Structure

0 votes
979 views

An SCTP packet has following two section -
1. Common Header
2. Data Chunk

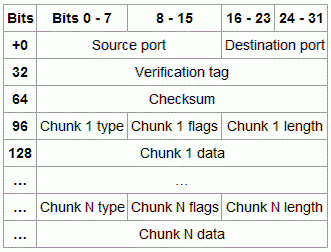

SCTP Header

1. Common Header

Source Port: Identifies the sending port.
Destination Port: Identifies the receiving port. Receiving host uses this port number to route the packet to the correct application.
Verification Tag: This is a 32-bit random value created during association establishment and distinguishes stale packets from a previous connection.
Checksum: Uses CRC32 algorithm to detect Transmission errors.

2. Data Chunk

Chunk Type: It is a 1 byte long field and Identifies type of chunk.
Chunk Flags: Consists of 8 flag-bits whose definition varies with the chunk type. The default value is zero. This indicates that no application identifier is specified by the upper layer for the data.
Chunk Length: Specifies the total length of the chunk in bytes. In SCTP If the chunk does not form a multiple of 4 bytes then padding with zeros is added to make it multiple of 4.
Chunk Value: General purpose data.

posted Jul 10, 2014 by Pardeep Kohli
