How to use a TabControl in WPF and windows phone application Part-1?

A Tab Control has tab items and each tab item represents a container that is used to host other controls. A typical example of a Tab control is the Visual Studio designer as shown in Figure 1. If you click on theWindow1.xaml tab item, you will see XAML code but if you click on Window1.xaml.cs, you will see C# code behind.

Figure 1

Create a Tab Control

The TabControl element in XAML represents a Tab Control.

<TabControl />

The code snippet in Listing 1 creates a Tab Control and sets it height, width, margin and alignment. The code also adds a TabItem.

<TabControl Height="238" HorizontalAlignment="Left" Margin="12,12,0,0"
Name="tabControl1" VerticalAlignment="Top" Width="445">
<TabItem Header="tabItem1" Name="tabItem1">
</TabItem>
</TabControl>

Listing 1

The output of Listing 1 looks as in Figure 2.

Figure 2

Adding Tab Items

A Tab Control is nothing without a Tab Item. The <TabItem \> element in XAML represents a Tab Item. The Header property of a TabItem represents the header text of the header. The following code creates aTabItem with the header text “Circle”.

</TabItem>

A tab item can host other XAML controls similar to a panel or grid control. For example, the following code adds a StackPanel to the tab item and on that StackPanel, it creates a circle with height and width 100.

Using the same preceding approach, I add three tab items to the tab control (Listing 2) called Circle, Rectangle and Polygon.

Listing 2

Part 2: http://tech.queryhome.com/94066/how-to-use-tabcontrol-wpf-and-windows-phone-application-part

How to use a TabControl in WPF and windows phone application Part-2?

Read our first Article How to use a TabControl in WPF and windows phone application Part-1?http://tech.queryhome.com/93377/how-to-use-tabcontrol-wpf-and-windows-phone-application-part#rHE29pyoFe3gKBoS.99

Listing 2
If I run the application, the Circle tab shows me a circle that looks as in Figure 3.

Figure 3
If I click on Rectangle and Polygon, the output looks as in Figure 4 and Figure 5 respectively.

Figure 4

Figure 5
Formatting Tab Items
Let's get a little creative. How about making our tab headers and tab control areas look nicer.

In a Tab Control, both a Tab Header and Tab Item are loosely coupled and we can treat them as any otherWPF control. That said, we can place any children controls on them, format them and do whatever we want. So if we want to place a DataGrid control in a TabItem header, we can do that.

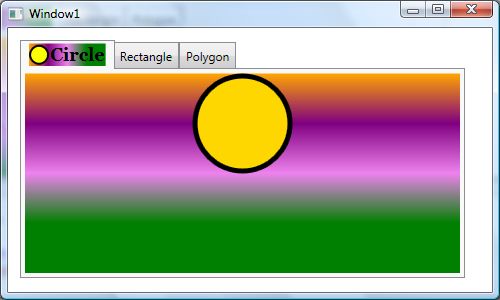

Now let's format our Tab Item Header and Tab Item container area. We will format our Tab Item that looks as in Figure 6, where we will use multiple colors for the background and change the text of the Tab Item Header and we will also change the background of the Tab Item container area to a gradient background.

Figure 6
To do this, I placed a StackPanel on TabItem.Header and set its background to a LinearGradientBrush. Then, I placed an Ellipse and a TextBlock on the TabItem Header.

Then as the content of the TabItem, I placed a StackPanel and changed its background to aLinearGradientBrush. See Listing 3.

Listing 3

Note: If you would like to load images at the top of text of the header, simply remove Orientation="Horizontal" from the stack panel in the preceding code. The default orientation is vertical.

NOTE: Part-3 will update soon..

How to use a TextBlock,XAML in WPF and windows phone application Part-1?

The XAML TextBlock element represents a text block. The TextBlock control provides a lightweight control for displaying small amounts of flow content. This article shows how to use a TextBlock control in WPF.

Creating a TextBlock

The TextBlock element represents a WPF TextBlock control in XAML.

<TextBlock/>

The Width and Height attributes of the TextBlock element represent the width and the height of aTextBlock. The Text property of the TextBlock element represents the content of a TextBlock. The Name attribute represents the name of the control that is a unique identifier of a control. The Foreground property sets the foreground color of contents. This control does not have a Background property.

The code snippet in Listing 1 creates a TextBlock control and sets the name, height, width, foreground and content of a TextBlock control. Unlike a TextBox control, the TextBlock does not have a default border around it.

<TextBlock Name="TextBlock1" Height="30" Width="200"

Text="Hello! I am a TextBlock." Foreground="Red">

</TextBlock>

Listing 1

The output looks as in Figure 1.

output
Figure 1

As you can see from Figure 1, by default the TextBlock is placed in the center of the page. We can place aTextBlock control where we want using the Margin, VerticalAlignment and HorizontalAlignment attributes that sets the margin, vertical alignment and horizontal alignment of a control.

The code snippet in Listing 2 sets the position of the TextBlock control in the left top corner of the page.

Listing 2

Creating a TextBlock Dynamically

The code listed in Listing 3 creates a TextBlock control programmatically. First, it creates a TextBlockobject and sets its width, height, contents and foreground and later the TextBlock is added to theLayoutRoot.

private void CreateATextBlock()
{
TextBlock txtBlock = new TextBlock();
txtBlock.Height = 50;
txtBlock.Width = 200;
txtBlock.Text = "Text Box content";
txtBlock.Foreground = new SolidColorBrush(Colors.Red);

LayoutRoot.Children.Add(txtBlock);
}

Listing 3

Setting Fonts of TextBlock Contents

The FontSize, FontFamily, FontWeight, FontStyle and FontStretch properties are used to set the font size, family, weight, style and stretch to the text of a TextBlock. The code snippet in Listing 4 sets the font properties of a TextBlock.

FontSize="14" FontFamily="Verdana" FontWeight="Bold"

Listing 4

The new output looks as in Figure 4.

hello

How to use ListBox in WPF and windows phone application Part 1?

Introduction

The XAML ListBox element represents a ListBox in WPF.

The ListBox tag represents a ListBox control in XAML.

<ListBox></ListBox>

The Width and Height properties represent the width and the height of a ListBox. The Name property represents the name of the control that is a unique identifier of a control. The Margin property tells the location of a ListBox on the parent control. The HorizontalAlignment and VerticalAlignment properties are used to set horizontal and vertical alignments.

The following code snippet sets the name, height and width of a ListBox control. The code also sets the horizontal alignment to left and the vertical alignment to top.

Adding ListBox Items

A ListBox control hosts a collection of ListBoxItems. The following code snippet adds items to a ListBoxcontrol.

The preceding code generates Figure 1.

Figure 1. ListBox with items

Adding ListBox Items Dynamically

In the previous section, we saw how to add items to a ListBox at design-time from XAML. We can add items to a ListBox from the code.

Let's change our UI and add a TextBox and a button control to the page. The XAML code for the TextBoxand Button controls look like following:

The final UI looks as in Figure 2.

Figure 2.

On a button click event handler, we add the content of the TextBox to the ListBox by calling theListBox.Items.Add method. The following code adds TextBox contents to the ListBox items.

private void button1_Click(object sender, RoutedEventArgs e)
{
listBox1.Items.Add(textBox1.Text);
}

In the button click event handler, we add the contents of the TextBox to the ListBox by calling theListBox.Items.Add method.

Now if you enter text into the TextBox and click the Add Item button, it will add the contents of the TextBoxto the ListBox.

Figure 3. Adding ListBox items dynamically

Deleting ListBox Items

We can use the ListBox.Items.Remove or ListBox.Items.RemoveAt method to delete an item from the collection of items in the ListBox. The RemoveAt method takes the index of the item in the collection.

Now, we modify our application and add a new button called Delete Item. The XAML code for this button looks as in the following.

<Button Height="23" Margin="226,14,124,0" Name="DeleteButton"
VerticalAlignment="Top" Click="DeleteButton_Click">
Delete Item

</Button>

The button click event handler looks as in following. On this button click, we find the index of the selected item and call the ListBox.Items.RemoveAt method as in the following.

private void DeleteButton_Click(object sender, RoutedEventArgs e)
{
listBox1.Items.RemoveAt
(listBox1.Items.IndexOf(listBox1.SelectedItem));
}

How to use a TextBlock in WPF and windows phone application Part-2?

Before Continue to read our first article How to use a TextBlock in WPF and windows phone application Part-1?

http://tech.queryhome.com/94985/how-use-textblock-xaml-wpf-and-windows-phone-application-part

The FontSource property allows loading custom fonts dynamically. The following code snippet sets theFontSource property.

Uri fontUri = new Uri("SomeFont.ttf", UriKind.Relative);

StreamResourceInfo MySRI = Application.GetResourceStream(fontUri);

TextBlock1.FontSource = new FontSource(MySRI.Stream);

Wrapping, Alignment and Padding

The TextWrapping property sets the wrap of no wrap text. The following code snippet sets the wrapping text option.

TextWrapping="Wrap"

The TextAlignment property sets the text alignment in a TextBlock that is of type TextAlignmentenumeration. A text can be aligned left, center, or right.

TextAlignment="Right"

The Padding property sets the space between a boundary and the text that can be applied to all sides or a selected side of the boundary. The padding spacing is based on left, right, top and bottom. If you specify only a single value, the padding will be applied to all four sides and if you specify two values, it will be applied to LeftTop and BottomRight sides.

Listing 5 shows all these properties in a complete sample.

<TextBlock Name="TextBlock1" Height="30" Width="200"

Text="Hello! I am a TextBlock." Foreground="Red"

Margin="10,10,0,0" VerticalAlignment="Top"

HorizontalAlignment="Left"

FontSize="14" FontFamily="Verdana" FontWeight="Bold"

TextWrapping="Wrap" TextAlignment="Center" Padding="2">

</TextBlock>

Listing 5

Inlines

The Inlines property represents the collection of inline text within a TextBlock control. A Run object represents an inline text and can be treated as its own text control and have its foreground and font related properties.

Listing 6 sets the Inlines property of the TextBlock and sets various fonts and foreground colors.

<TextBlock.Inlines>

<Run.Foreground>

</LinearGradientBrush>

</Run.Foreground>

</Run>

</TextBlock.Inlines>

Listing 6

The new output looks as in Figure 5.

Figure 5

TextDecorations

The TextDecorations property represents the text decorations that are applied to the content of aTextBlock. WPF supports only underlined text decoration.

Listing 7 sets the TextDecorations to underline.

<TextBlock Name="TextBlock1"

Margin="10,10,0,0" VerticalAlignment="Top"

HorizontalAlignment="Left"

FontSize="12" FontFamily="Verdana"

TextWrapping="Wrap" TextAlignment="Left" Padding="2"

TextDecorations="Underline">

Listing 7

The new output looks as in Figure 6.

new output looks like
Figure 6

Summary

In this article, I discussed how to create and format a TextBlock control in WPF and C#. Then we saw how to create a TextBlock control dynamically. Then we saw how to set various properties of a TextBlock such as fonts, Inlines and text decorations.

How to use a TabControl in WPF and windows phone application Part-3?

Before Continue Read our Second Article How to use a TabControl in WPF and windows phone application Part-2?

http://tech.queryhome.com/94066/how-to-use-tabcontrol-wpf-and-windows-phone-application-part

Display Image as Tab Item Header

You may display an image in a Tab Item Header by placing an Image control as TabItem.Header as in the following.

<TabItem.Header>
<Image Source="Flower.jpg" Width="50" />
</TabItem.Header>

The Tab Item Header with image looks as in Figure 7.

Figure 7

Position Tab Items

The TabStripPlacement property of a TabControl is used to position Tab Items. The value ofTabStripPlacement can be Left, Top, Bottom and Right. The following code snippet sets the Tab Items position to bottom.

The TabControl with bottom positioned Tab Items looks as in Figure 8.

Figure 8

How to add a Context Menu to a Tab Control

TabItem.ContextMenu is used to add a ContextMenu to a TabItem. The following code snippet creates aTabControl where the first TabItem has a ContextMenu with three Menu items.

Write this click event handler in your code behind.

void ContextMenuClickEventHandler(object sender, RoutedEventArgs e)
{
if (e.Source == RedMenuItem )
{
ColorTabItem.Header = "Red Item";
ColorTabItem.Foreground = Brushes.Red;
}
else if (e.Source == BlueMenuItem )
{
ColorTabItem.Header = "Blue Item";
ColorTabItem.Foreground = Brushes.Blue;
}
else if (e.Source == OrangeMenuItem )
{
ColorTabItem.Header = "Orange Item";
ColorTabItem.Foreground = Brushes.Orange;
}
}

The output looks like this. Download the attached project for more details.

Summary

In this article, we saw how to create and use a TabControl in a WPF application. We also saw how to make a tab item header and its contents more interactive by simply adding a few lines of code to our XAML file.

How to use ListBox in WPF and windows phone application Part 6?

Data Binding with Controls

The last data binding type we will see is how to provide a data exchange between a ListBox and other controls using data binding in WPF.

We will create an application that looks as in Figure 12. In Figure 12, I have a ListBox with a list of colors, a TextBox and a Canvas. When we pick a color from the ListBox, the text of TextBox and color of Canvas changes dynamically to the color selected in the ListBox and this is possible to do all inXAML without writing a single line of code in the code behind file.

looks like Figure
Figure 12.

The XAML code of the page looks as in following.

     <StackPanel Orientation="Vertical">
<TextBlock Margin="10,10,10,10" FontWeight="Bold">
Pick a color from below list
</TextBlock>
<ListBox Name="mcListBox" Height="100" Width="100"
Margin="10,10,0,0" HorizontalAlignment="Left" >
<ListBoxItem>Orange</ListBoxItem>
<ListBoxItem>Green</ListBoxItem>
<ListBoxItem>Blue</ListBoxItem>
<ListBoxItem>Gray</ListBoxItem>
<ListBoxItem>LightGray</ListBoxItem>
<ListBoxItem>Red</ListBoxItem>
</ListBox>
<TextBox Height="23" Name="textBox1" Width="120" Margin="10,10,0,0" HorizontalAlignment="Left" >
<TextBox.Text>
<Binding ElementName="mcListBox" Path="SelectedItem.Content"/>
</TextBox.Text>
</TextBox>
<Canvas Margin="10,10,0,0" Height="200" Width="200" HorizontalAlignment="Left" >
<Canvas.Background>
<Binding ElementName="mcListBox" Path="SelectedItem.Content"/>
</Canvas.Background>
</Canvas>
</StackPanel>

If you look at the TextBox XAML code, you will see the Binding within the TextBox.Text property that sets the binding from TextBox to another control and another control ID is ElementName and another control's property is Path. So in the following code, we are setting the SelectedItem.Content property ofListBox to the TextBox.Text property.

<TextBox.Text>

Now the same applies to the Canvas.Background property, where we set it to theSelectedItem.Content of the ListBox. Now, every time you select an item in the ListBox, theTextBox.Text and Canvas.Background properties are set to that selected item in the ListBox.

<Canvas.Background>
<Binding ElementName="mcListBox" Path="SelectedItem.Content"/>
</Canvas.Background>

Summary

In this article, I explained how to create and use a ListBox control available in WPF and WP8. We saw how to add items to a ListBox, change item properties and add images add check boxes. In the end of this article, we saw how data binding works in ListBox and how to bind a ListBox with data coming from objects, databases and other controls.

How to use ListBox in WPF and windows phone application Part 5?

Now we add a ListBox control and set its ItemsSource property as the first DataTable of the DataSetand set ItemTemplate to the resource defined above.

Now in our code behind, we define the following variables.

public SqlConnection connection;

public SqlCommand command;

string sql = "SELECT ContactName, Address, City, Country FROM Customers";

string connectionString = @"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\NORTHWND.MDF;Integrated Security=True;Connect Timeout=30;User Instance=True";

Now on the Windows_Loaded method, we call the BindData method and in the BindData method, we create a connection, data adapter and fill in the DataSet using the SqlDataAdapter.Fill() method.

private void Window_Loaded(object sender, RoutedEventArgs e)
{
BindData();
}

private void BindData()
{
DataSet dtSet = new DataSet();
using (connection = new SqlConnection(connectionString))
{
command = new SqlCommand(sql, connection);
SqlDataAdapter adapter = new SqlDataAdapter();
connection.Open();
adapter.SelectCommand = command;
adapter.Fill(dtSet, "Customers");
listBox1.DataContext = dtSet;
}
}

Data Binding with XML

Now let's look at how to bind XML data to a ListBox control. The XmlDataProvider is used to bind XMLdata in WPF.

Here is an XmlDataProvider defined in XAML that contains books data. The XML data is defined within the x:Data tag.

<XmlDataProvider x:Key="BooksData" XPath="Inventory/Books">
<x:XData>
<Inventory xmlns="">
<Books>
<Book Category="Programming" >
<Title>A Programmer's Guide to ADO.NET</Title>
<Summary>Learn how to write database applications using ADO.NET and C#.
</Summary>
<Author>Mahesh Chand</Author>
<Publisher>APress</Publisher>
</Book>
<Book Category="Programming" >
<Title>Graphics Programming with GDI+</Title>
<Summary>Learn how to write graphics applications using GDI+ and C#.
</Summary>
<Author>Mahesh Chand</Author>
<Publisher>Addison Wesley</Publisher>
</Book>
<Book Category="Programming" >
<Title>Visual C#</Title>
<Summary>Learn how to write C# applications.
</Summary>
<Author>Mike Gold</Author>
<Publisher>APress</Publisher>
</Book>
<Book Category="Programming" >
<Title>Introducing Microsoft .NET</Title>
<Summary>Programming .NET
</Summary>
<Author>Mathew Cochran</Author>
<Publisher>APress</Publisher>
</Book>
<Book Category="Database" >
<Title>DBA Express</Title>
<Summary>DBA's Handbook
</Summary>
<Author>Mahesh Chand</Author>
<Publisher>Microsoft</Publisher>
</Book>
</Books>
</Inventory>
</x:XData>
</XmlDataProvider>

To bind an XmlDataProvider, we set the Source property inside the ItemsSource of a ListBox to thex:Key of XmlDataProvider and XPath is used to filter the data. In the ListBox.ItemTempate, we use the Binding property.

The output of the preceding code looks as in Figure 11.

code behind file

How to use a TabControl in WPF and windows phone application Part-1?

Your comment on this post:

Related Articles
