How to use a TextBlock in WPF and windows phone application Part-2?

+5 votes
490 views

Before Continue to read our first article How to use a TextBlock in WPF and windows phone application Part-1?

http://tech.queryhome.com/94985/how-use-textblock-xaml-wpf-and-windows-phone-application-part

The FontSource property allows loading custom fonts dynamically. The following code snippet sets theFontSource property.

Uri fontUri = new Uri("SomeFont.ttf", UriKind.Relative);

StreamResourceInfo MySRI = Application.GetResourceStream(fontUri);

TextBlock1.FontSource = new FontSource(MySRI.Stream);

Wrapping, Alignment and Padding

The TextWrapping property sets the wrap of no wrap text. The following code snippet sets the wrapping text option.

TextWrapping="Wrap"

The TextAlignment property sets the text alignment in a TextBlock that is of type TextAlignmentenumeration. A text can be aligned left, center, or right.

TextAlignment="Right"

The Padding property sets the space between a boundary and the text that can be applied to all sides or a selected side of the boundary. The padding spacing is based on left, right, top and bottom. If you specify only a single value, the padding will be applied to all four sides and if you specify two values, it will be applied to LeftTop and BottomRight sides.

Listing 5 shows all these properties in a complete sample.

<TextBlock Name="TextBlock1" Height="30" Width="200"

    Text="Hello! I am a TextBlock." Foreground="Red"

    Margin="10,10,0,0" VerticalAlignment="Top"

    HorizontalAlignment="Left"

    FontSize="14" FontFamily="Verdana" FontWeight="Bold"

    TextWrapping="Wrap" TextAlignment="Center" Padding="2">

</TextBlock>

                                                      Listing 5

Inlines

The Inlines property represents the collection of inline text within a TextBlock control. A Run object represents an inline text and can be treated as its own text control and have its foreground and font related properties.

Listing 6 sets the Inlines property of the TextBlock and sets various fonts and foreground colors.

<TextBlock.Inlines>

    <Run FontWeight="Bold" FontSize="14" Text="Hi! I am a TextBlock. " />

    <Run FontStyle="Italic" Foreground="Red" Text="This is red text. " />

    <Run FontStyle="Italic" FontSize="18" Text="Here is some linear gradient text. ">

        <Run.Foreground>

            <LinearGradientBrush>

                <GradientStop Color="Green" Offset="0.0" />

                <GradientStop Color="Purple" Offset="0.25" />

                <GradientStop Color="Orange" Offset="0.5" />

                <GradientStop Color="Blue" Offset="0.75" />

              </LinearGradientBrush>

        </Run.Foreground>

    </Run>

    <Run FontStyle="Italic" Foreground="Green" Text="How about adding some green? " />

</TextBlock.Inlines>

                                                      Listing 6

The new output looks as in Figure 5.

                    new output looks
                                                      Figure 5

TextDecorations

The TextDecorations property represents the text decorations that are applied to the content of aTextBlock. WPF supports only underlined text decoration.

Listing 7 sets the TextDecorations to underline.

<TextBlock Name="TextBlock1"

    Margin="10,10,0,0" VerticalAlignment="Top"

    HorizontalAlignment="Left"

    FontSize="12" FontFamily="Verdana"

    TextWrapping="Wrap" TextAlignment="Left" Padding="2"

           TextDecorations="Underline">

                                                      Listing 7

The new output looks as in Figure 6.

              new output looks like
                                                      Figure 6

Summary

In this article, I discussed how to create and format a TextBlock control in WPF and C#. Then we saw how to create a TextBlock control dynamically. Then we saw how to set various properties of a TextBlock such as fonts, Inlines and text decorations.

posted Jul 27, 2015 by Jdk

  Promote This Article
Facebook Share Button Twitter Share Button LinkedIn Share Button


Related Articles

The XAML TextBlock element represents a text block. The TextBlock control provides a lightweight control for displaying small amounts of flow content. This article shows how to use a TextBlock control in WPF.

Creating a TextBlock

The TextBlock element represents a WPF TextBlock control in XAML.

  1. <TextBlock/>

The Width and Height attributes of the TextBlock element represent the width and the height of aTextBlock. The Text property of the TextBlock element represents the content of a TextBlock. The Name attribute represents the name of the control that is a unique identifier of a control. The Foreground property sets the foreground color of contents. This control does not have a Background property.

The code snippet in Listing 1 creates a TextBlock control and sets the name, height, width, foreground and content of a TextBlock control. Unlike a TextBox control, the TextBlock does not have a default border around it.

<TextBlock Name="TextBlock1" Height="30" Width="200"

    Text="Hello! I am a TextBlock." Foreground="Red">

</TextBlock>

Listing 1

The output looks as in Figure 1

                                          output
                                                      Figure 1

As you can see from Figure 1, by default the TextBlock is placed in the center of the page. We can place aTextBlock control where we want using the MarginVerticalAlignment and HorizontalAlignment attributes that sets the margin, vertical alignment and horizontal alignment of a control.

The code snippet in Listing 2 sets the position of the TextBlock control in the left top corner of the page.

<TextBlock Name="TextBlock1" Height="30" Width="200"
        Text="Hello! I am a TextBlock."
        Margin="10,10,0,0" VerticalAlignment="Top"
        HorizontalAlignment="Left">
</TextBlock>  ​

                                                      Listing 2

Creating a TextBlock Dynamically

The code listed in Listing 3 creates a TextBlock control programmatically. First, it creates a TextBlockobject and sets its width, height, contents and foreground and later the TextBlock is added to theLayoutRoot

private void CreateATextBlock()
{
    TextBlock txtBlock = new TextBlock();
    txtBlock.Height = 50;
    txtBlock.Width = 200;
    txtBlock.Text = "Text Box content";
    txtBlock.Foreground = new SolidColorBrush(Colors.Red);

    LayoutRoot.Children.Add(txtBlock);
} ​

                                                      Listing 3

Setting Fonts of TextBlock Contents

The FontSizeFontFamilyFontWeightFontStyle and FontStretch properties are used to set the font size, family, weight, style and stretch to the text of a TextBlock. The code snippet in Listing 4 sets the font properties of a TextBlock

  1. FontSize="14" FontFamily="Verdana" FontWeight="Bold"

                                                      Listing 4

The new output looks as in Figure 4.

                                    hello

READ MORE

Read our first Article How to use a TabControl in WPF and windows phone application Part-1?http://tech.queryhome.com/93377/how-to-use-tabcontrol-wpf-and-windows-phone-application-part#rHE29pyoFe3gKBoS.99


Listing 2
If I run the application, the Circle tab shows me a circle that looks as in Figure 3.



Figure 3
If I click on Rectangle and Polygon, the output looks as in Figure 4 and Figure 5 respectively.



Figure 4



Figure 5
Formatting Tab Items

Let's get a little creative. How about making our tab headers and tab control areas look nicer.

In a Tab Control, both a Tab Header and Tab Item are loosely coupled and we can treat them as any otherWPF control. That said, we can place any children controls on them, format them and do whatever we want. So if we want to place a DataGrid control in a TabItem header, we can do that.

Now let's format our Tab Item Header and Tab Item container area. We will format our Tab Item that looks as in Figure 6, where we will use multiple colors for the background and change the text of the Tab Item Header and we will also change the background of the Tab Item container area to a gradient background.




Figure 6
To do this, I placed a StackPanel on TabItem.Header and set its background to a LinearGradientBrush. Then, I placed an Ellipse and a TextBlock on the TabItem Header.

Then as the content of the TabItem, I placed a StackPanel and changed its background to aLinearGradientBrush. See Listing 3.

​     <TabItem >
        <!-- Create Tab Header -->
        <TabItem.Header>
            <!-- Place a StackPanel on TabHeader so we can place multiple controls on it -->
            <StackPanel Orientation="Horizontal">
                <StackPanel.Background>
                    <LinearGradientBrush StartPoint="0,0" EndPoint="1,0" >
                        <LinearGradientBrush.GradientStops>
                            <GradientStop Offset="0" Color="Orange"/>
                            <GradientStop Offset="0.25" Color="Purple"/>
                            <GradientStop Offset="0.5" Color="Violet"/>
                            <GradientStop Offset="0.75" Color="Green"/>
                        </LinearGradientBrush.GradientStops>
                    </LinearGradientBrush>
                </StackPanel.Background>
                <Ellipse Height="20" Width="20" Stroke="Black" StrokeThickness="2" Fill="Yellow"/>
                <TextBlock Text="Circle" Margin="1,1,1,1" VerticalAlignment="Center"
                           FontFamily="Georgia" FontSize="18" FontWeight="Bold" />
            </StackPanel>
        </TabItem.Header>

        <!-- Place a StackPanel on TabItem to place children controls -->
        <StackPanel>
            <StackPanel.Background>
                <LinearGradientBrush StartPoint="0,0" EndPoint="0,1" >
                    <LinearGradientBrush.GradientStops>
                        <GradientStop Offset="0" Color="Orange"/>
                        <GradientStop Offset="0.25" Color="Purple"/>
                        <GradientStop Offset="0.5" Color="Violet"/>
                        <GradientStop Offset="0.75" Color="Green"/>
                    </LinearGradientBrush.GradientStops>
                </LinearGradientBrush>
            </StackPanel.Background>
            <Ellipse Height="100" Width="100" StrokeThickness="5" Stroke="black" Fill="gold"/>
        </StackPanel>
    </TabItem >


Listing 3

Note: If you would like to load images at the top of text of the header, simply remove Orientation="Horizontal" from the stack panel in the preceding code. The default orientation is vertical.



NOTE: Part-3 will update soon..

READ MORE

Formatting and Styling

Formatting ListBox Items


The Foreground and Background attributes of ListBoxItem represents the background and foreground colors of the item. The following code snippet sets the background and foreground colors of aListBoxItem.

<ListBoxItem Background="LightCoral" Foreground="Red" Content="Coffie"></ListBoxItem>

The FontFamilyFontSize and FontWeight are used to set a font of a ListBoxItem. The following code snippet sets the font to verdana, the size to 12 and bold of a ListBoxItem

<ListBoxItem Background="LightCoral" Foreground="Red" Content="Coffie" FontFamily="Verdana" FontSize="12" FontWeight="Bold"></ListBoxItem>

I set the following properties of ListBoxItems.

<ListBoxItem Background="LightCoral" Foreground="Red" Content="Coffie"
                         FontFamily="Verdana" FontSize="12" FontWeight="Bold"></ListBoxItem>
            <ListBoxItem Background="LightGray" Foreground="Black" Content="Tea"
                         FontFamily="Georgia" FontSize="14" FontWeight="Bold"></ListBoxItem>
            <ListBoxItem Background="LightBlue" Foreground="Purple" Content="Orange Juice"
                         FontFamily="Verdana" FontSize="12" FontWeight="Bold"></ListBoxItem>
            <ListBoxItem Background="LightGreen" Foreground="Green" Content="Milk"
                         FontFamily="Georgia" FontSize="14" FontWeight="Bold"></ListBoxItem>
            <ListBoxItem Background="LightBlue" Foreground="Blue" Content="Iced Tea"
                         FontFamily="Verdana" FontSize="12" FontWeight="Bold"></ListBoxItem>
            <ListBoxItem Background="LightSlateGray" Foreground="Orange" Content="Mango Shake"
                         FontFamily="Georgia" FontSize="14" FontWeight="Bold"></ListBoxItem>

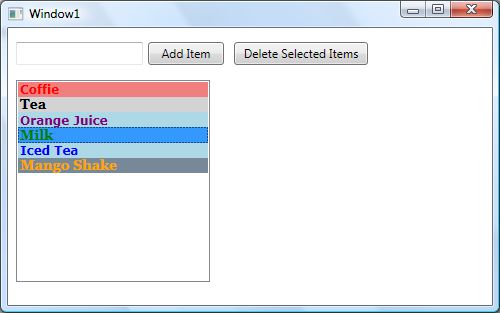

The new ListBox looks as in Figure 4.

Formatted ListBox
                                       Figure 4. Formatted ListBox

Displaying Images in a ListBox

We can put any controls inside a ListBoxItem such as an image and text. To display an image beside some text, I simply put an Image and TextBlock control within a StackPanel. The Image.Source property takes the name of the image you would like to display in the Image control and the TextBlock.Text property takes a string that you would like to display in the TextBlock.

The following code snippet adds an image and text to a ListBoxItem

<ListBoxItem Background="LightCoral" Foreground="Red"
             FontFamily="Verdana" FontSize="12" FontWeight="Bold">
    <StackPanel Orientation="Horizontal">
        <Image Source="coffie.jpg" Height="30"></Image>
        <TextBlock Text="Coffie"></TextBlock>
    </StackPanel>
</ListBoxItem>

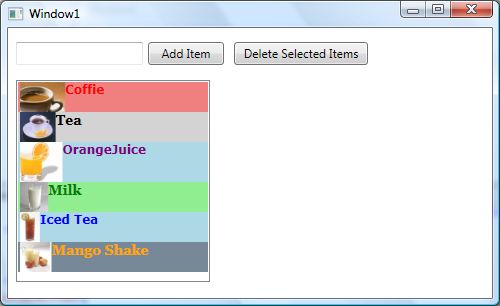

After changing my code for all 5 ListBoxItems, the ListBox looks as in Figure 5.
